Lenovo ThinkSystem DE4000H Hybrid Storage Array 2U12

Name: Lenovo ThinkSystem DE4000H Hybrid Storage Array 2U12
Brand: Shanghai Qingguang Electronic Technology Co., Ltd.
SKU: DM5000H/F DM7100H/F
Price: 7,777.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Lenovo

Model Number: DM5000H/F DM7100H/F

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $6666.00 - $8888/pieces

Packaging Details: Original Packing

Delivery Time: 1-2months

Payment Terms: T/T

Supply Ability: 100 Carton/Cartons per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Lenovo ThinkSystem DE4000H, Hybrid Storage Array 2U12, DE4000H Hybrid Storage Array


Model:	DE6000H	Segment:	DE4000H 2U24 SFF Controller Enclosure (Machine Type 7Y75): 2U Rack Mount. DE4000H 2U12 LFF Controller Enclosure (Machine Type 7Y74): 2U Rack Mount. DE4000H 4U60 LFF Controller Enclosure (Machine Type 7Y77): 4U Rack Mount.
Controller:	RAID 0, 1, 3, 5, 6, And 10; Dynamic Disk Pools. Note: RAID 3 Can Be Configured Only Through The CLI.	IOPS:	Up To 670K IOPS
Maximum Drives:	96	Controller System Memory:	16 GB Or 64 GB Per System (8 GB Or 32 GB Per Controller). Cache Mirroring Between The Controllers. Flash-backed Cache Protection (includes Battery For Destaging To Flash).
Storage Capacity:	Up To 3.375 PB (192x 18 TB LFF HDDs).	Power Supply:	Two Redundant Hot-swap 913 W (100 - 240 V) (2U24 And 2U12 Enclosures) Or 2325 W (200 - 240 V) (4U60 Enclosures) Platinum AC Power Supplies.

Model:	DE6000H
Segment:	DE4000H 2U24 SFF Controller Enclosure (Machine Type 7Y75): 2U Rack Mount. DE4000H 2U12 LFF Controller Enclosure (Machine Type 7Y74): 2U Rack Mount. DE4000H 4U60 LFF Controller Enclosure (Machine Type 7Y77): 4U Rack Mount.
Controller:	RAID 0, 1, 3, 5, 6, And 10; Dynamic Disk Pools. Note: RAID 3 Can Be Configured Only Through The CLI.
IOPS:	Up To 670K IOPS
Maximum Drives:	96
Controller System Memory:	16 GB Or 64 GB Per System (8 GB Or 32 GB Per Controller). Cache Mirroring Between The Controllers. Flash-backed Cache Protection (includes Battery For Destaging To Flash).
Storage Capacity:	Up To 3.375 PB (192x 18 TB LFF HDDs).
Power Supply:	Two Redundant Hot-swap 913 W (100 - 240 V) (2U24 And 2U12 Enclosures) Or 2325 W (200 - 240 V) (4U60 Enclosures) Platinum AC Power Supplies.

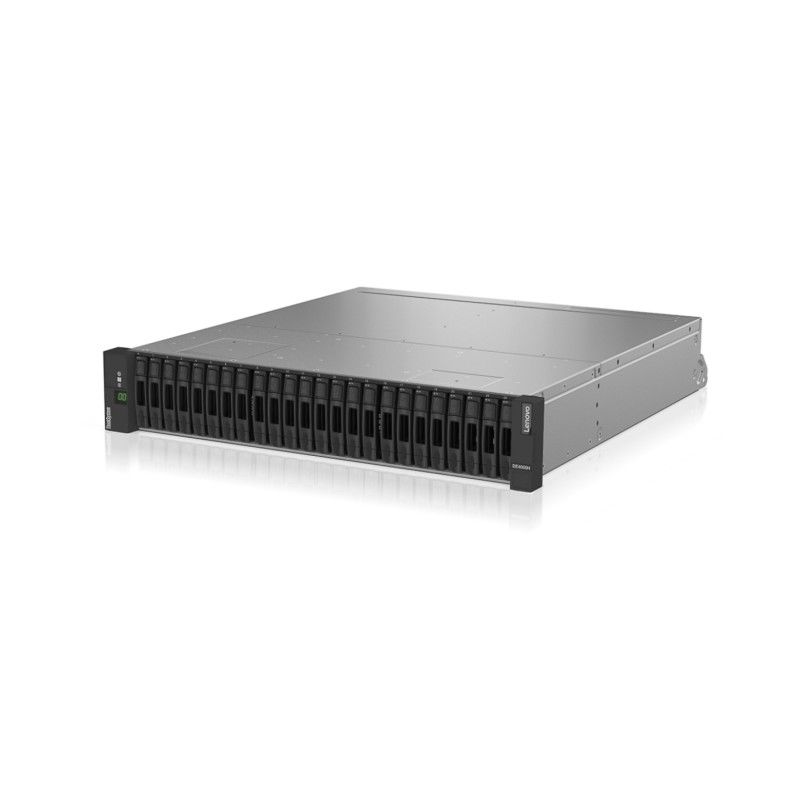

Lenovo ThinkSystem DE4000H Hybrid Storage Array 2U12

Details Images

Form factor	* DE4000H 2U24 SFF controller enclosure (Machine Type 7Y75): 2U rack mount. * DE4000H 2U12 LFF controller enclosure (Machine Type 7Y74): 2U rack mount. * DE4000H 4U60 LFF controller enclosure (Machine Type 7Y77): 4U rack mount. * DE240S 2U24 SFF expansion enclosure (Machine Type 7Y68): 2U rack mount. * DE120S 2U12 LFF expansion enclosure (Machine Type 7Y63): 2U rack mount. * DE600S 4U60 LFF expansion enclosure (Machine Type 7Y69): 4U rack mount.
Controller configuration	Dual active-active controller configuration with automatic load balancing.
RAID levels	RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. Note: RAID 3 can be configured only through the CLI.
Controller system memory	16 GB or 64 GB per system (8 GB or 32 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery for destaging to flash).
Expansion enclosure support	* DE4000H 2U24 SFF controller: 3x DE120S, 3x DE240S or 2x DE600S * DE4000H 2U12 LFF controller: 7x DE120S, 3x DE240S or 3x DE600S * DE4000H 4U60 LFF controller: 3x DE120S, 3x DE240S or 2x DE600S * Expansion enclosures may be mixed up to a maximum of 7 expansion enclosures
