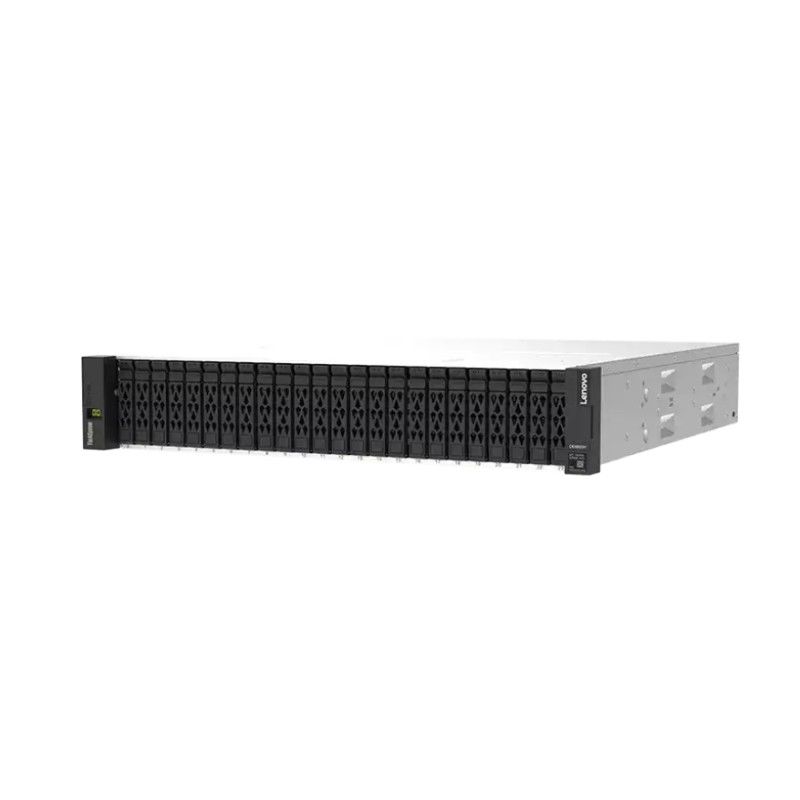

2U24 Controller Lenovo ThinkSystem DE6600H Hybrid Storage Array

Name: 2U24 Controller Lenovo ThinkSystem DE6600H Hybrid Storage Array
Brand: Shanghai Qingguang Electronic Technology Co., Ltd.
SKU: DM5000H/F DM7100H/F
Price: 404.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Lenovo

Model Number: DM5000H/F DM7100H/F

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $6666.00 - $8,800.00/pieces

Packaging Details: Original Packing

Delivery Time: 1-2months

Payment Terms: T/T

Supply Ability: 100 Carton/Cartons per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Lenovo Hybrid Flash Arrays, ThinkSystem DE6600H Hybrid Storage Array


Model:	DE6600H	Controller:	Base System: 2U/24 Expansion: 2U/24
Maximum Raw Capacity:	1.47PB	IOPS:	Up To 2M IOPS
Maximum Drives:	96	Sustained Throughput:	Up To 10GBps

Model:	DE6600H
Controller:	Base System: 2U/24 Expansion: 2U/24
Maximum Raw Capacity:	1.47PB
IOPS:	Up To 2M IOPS
Maximum Drives:	96
Sustained Throughput:	Up To 10GBps

2U24 Controller Lenovo ThinkSystem DE6600H Hybrid Storage Array

	DE6000H	DE4000H	DE6400H	DE6600H
Form Factor (Controller Enclosure)	4U, 60 drives 2U, 24 drives	2U, 24 drives 2U, 12 drives 4U, 60 drives	2U, 24 drives (NVMe)	2U, 24 drives (NVMe)
Maximum Raw Capacity	Supports up to 8.64PB	Supports up to 3.456PB	Supports up to 4.68PB	Supports up to 7.92PB
Maximum Drives	Supports up to 480 HDDs / 120 SSDs	Supports up to 192 HDDs / 120 SSDs	Supports up to a maximum of 264 drives (24 NVMe in Controller Enclosure + 240 NL-SAS HDDs)	Supports up to a maximum of 444 drives (24 NVMe in Controller Enclosure + 420 NL-SAS HDDs)
Maximum Expansion	2U/12, 2U/24: up to 7 expansions 4U/60: up to 3 expansions	2U/12, 2U/24: up to 7 expansions 4U/60: up to 3 expansions	2U/12, 2U/24, 4U/60: up to 4 expansions	2U/12, 2U/24, 4U/60: up to 4 expansions
IOPS	1,000,000 IOPS	300,000 IOPS	670,000 IOPS	2,000,000 IOPS
System Memory	32GB/128GB	16GB/64GB	16GB per controller	32GB or 128GB per controller
Optional I/O Ports (per system)	8x 16Gb/32Gb FC 8x 10Gb/25Gb iSCSI 8x 12Gb SAS	8x 16Gb/32Gb FC 8x 10Gb/25Gb iSCSI 8x 12Gb SAS	4x 100Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB 8x 32Gb FC (supports FC SCSI and NVMe/FC) 8x 25Gb iSCSI	8x 100Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB 16x 32Gb FC (supports FC SCSI and NVMe/FC) 16x 25Gb iSCSI
