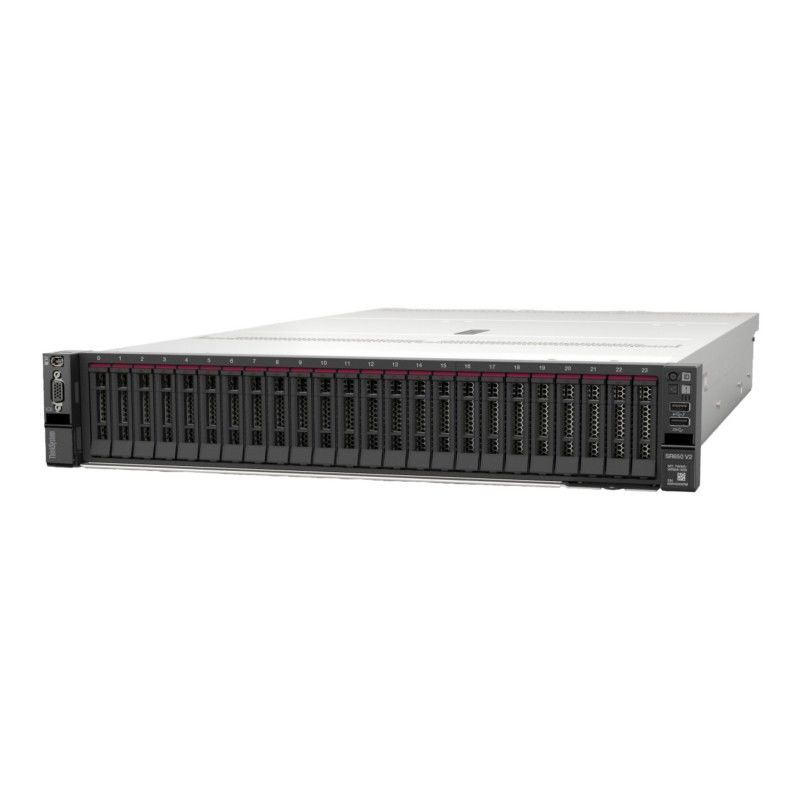

Original Lenovo ThinkSystem SR650 V2 2U Rack Server 3rd Processor

Name: Original Lenovo ThinkSystem SR650 V2 2U Rack Server 3rd Processor
Brand: Shanghai Qingguang Electronic Technology Co., Ltd.
SKU: SR650 V2
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Lenovo

Model Number: SR650 V2

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $1,900.00/pieces

Packaging Details: Original Packing

Delivery Time: 1-2months

Payment Terms: T/T

Supply Ability: 100 Carton/Cartons per Month

Get Best Price

Product Details

Product Description

Products Status:	Stock	Type:	Rack
Processor Type:	Intel Xeon Scalable Processor	Memory:	32x TruDDR4 (RDIMM/3DS) 3200 MHz DIMMs
Hard Drive:	HDD/SSD	RAID:	12Gb SAS/SATA/RAID Support
Power Supplies:	Hot-swap PSUs	Warranty:	3 Years

Products Status:	Stock
Type:	Rack
Processor Type:	Intel Xeon Scalable Processor
Memory:	32x TruDDR4 (RDIMM/3DS) 3200 MHz DIMMs
Hard Drive:	HDD/SSD
RAID:	12Gb SAS/SATA/RAID Support
Power Supplies:	Hot-swap PSUs
Warranty:	3 Years

Original Lenovo ThinkSystem SR650 V2 2U Rack Server 3rd Processor

Details Images

Machine types	7Z73 - 3 year warranty
Form factor	2U rack.
Processor	One or two third-generation Intel Xeon Scalable processor (formerly codenamed "Ice Lake"). Supports processors up to 40 cores,core speeds of up to 3.6 GHz, and TDP ratings of up to 270W.
Memory	32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel(DPC). Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported. DIMM slots are shared between standard system memory and persistent memory. DIMMs operate at up to 3200 MHz at 2 DPC.
Chipset	Intel C621A "Lewisburg" chipset, part of the platform codenamed "Whitley"
Memory maximum	With RDIMMs: Up to 8TB by using 32x 256GB 3DS RDIMMs With Persistent Memory: Up to 12TB by using 16x 256GB 3DS RDIMMs and 16x 512GB Pmem modules
Drive drives bays	Up to 20x 3.5-inch or 40x 2.5-inch hot-swap drive bays: * Front bays can be 3.5-inch (8 or 12 bays) or 2.5-inch (8, 16 or 24 bays) * Middle bays can be 3.5-inch (4 bays) or 2.5-inch (8 bays) * Rear bays can be 3.5-inch (2 or 4 bays) or 2.5-inch (4 or 8 bays) * Combinations of SAS/SATA, NVMe, or AnyBay (supporting SAS, SATA or NVMe) are available The server also supports these drives for OS boot or drive storage: * Two 7mm drives at the rear of the server (in addition to any 2.5-inch or 3.5-inch drive bays) * Internal M.2 module supporting up to two M.2 drives
Internal storage capacity	* 2.5-inch drives: * 1228.8TB using 40x 30.72TB 2.5-inch SAS/SATA SSDs * 983.04TB using 32x 30.72TB 2.5-inch NVMe SSDs * 96TB using 40x 2.4TB 2.5-inch HDDs * 3.5-inch drives: * 440TB using 20x 22TB 3.5-inch HDDs * 307.2TB using 20x 15.36TB 3.5-inch SAS/SATA SSDs * 153.6TB using 12x 12.8TB 3.5-inch NVMe SSDs
Storage controller	* 12x Onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID) * Up to 16x Onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs) * NVMe Retimer Adapter (supports Intel VROC NVMe RAID) * 12 Gb SAS/SATA RAID adapters * 8, 16 or 32 ports * Up to 8GB flash-backed cache * PCIe 4.0 or PCIe 3.0 host interface * 12 Gb SAS/SATA HBA (non-RAID) * 8-port and 16-port * PCIe 4.0 or PCIe 3.0 host interface
Network Interface	Dedicated OCP 3.0 SFF slot with PCIe 4.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE and 25GbE network connectivity. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support.
PCI Expansion slots	Up to 8x PCIe 4.0 slots, all full height slots and with rear access, plus a slot dedicated to the OCP adapter. Slot availability is based on riser selection and rear drive bay selection. Slots 4, 5, and 6 (riser 2) require two processors. Slots are configured using three riser cards. Riser 1 (slots 1-3) and Riser 2 (slots 4-6) are installed in slots in the system board, Riser 3 (slots 7-8) is cabled to ports on the system board.
Ports	Front: 1x USB 3.1 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.1 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Internal: 1x USB 3.1 G1 connector for operating system or license key purposes
Cooling	6x (with two processors installed) or 5x (with one processor installed) single-rotor or dual-rotor hot swap 60 mm fans,configuration dependent. Fans are N+1 redundant, tolerating a single-rotor failure. One fan integrated in each power supply.
Power supply	Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 500 W, 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 500 W, 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Also available is a 1100W power supply with a -48V DC input.
Video	G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Dimensions	Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.).
Weight	Maximum: 38.8 kg (85.5 lb)
