Name: Enterprise Lenovo Network Switch ThinkSystem DB630S 32Gb FC SAN Switch
Brand: Shanghai Qingguang Electronic Technology Co., Ltd.
SKU: DB630S
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Lenovo

Model Number: DB630S

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $10,000.00 - $20,000.00/pieces

Packaging Details: Carton Packing

Delivery Time: 1-2months

Payment Terms: T/T

Supply Ability: 100 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Lenovo Network Switch ThinkSystem DB630S, Lenovo FC SAN Switch, Lenovo Network Switch 32Gb


Products Status:	Stock	Ports:	≥ 48
Model:	DB630S	Form Factor:	Standalone Or 2U Rack Mount
Port:	Shenzhen/Beijing

Products Status:	Stock
Ports:	≥ 48
Model:	DB630S
Form Factor:	Standalone Or 2U Rack Mount
Port:	Shenzhen/Beijing

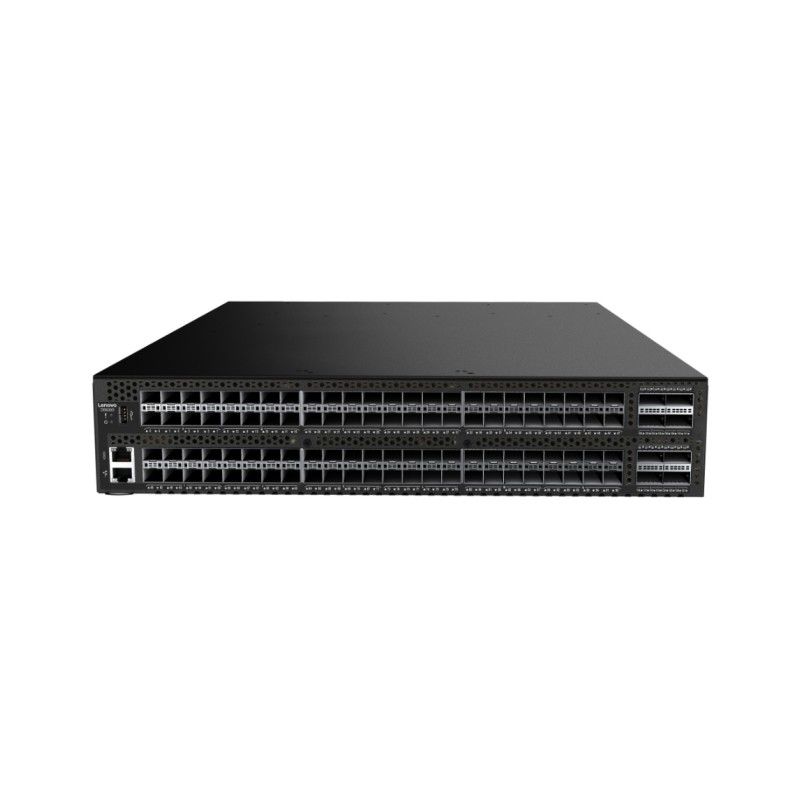

Enterprise Lenovo Network Switch ThinkSystem DB630S 32Gb FC SAN Switch

Details Images

Form factor	Standalone or 2U rack mount
Ports	* 96x SFP+ ports: * Model CTO5: 48 ports activated and 48x 32 Gb FC SWL SFP+ transceivers included; up to two optional 24-port activation licenses or bundles (24-port licenses and 24x 32 Gb FC SWL SFP+ transceivers) * Model CTO6: 96 ports activated and 96x 32 Gb FC SWL SFP+ transceivers included * 8x QSFP+ ports (require an optional activation license or bundle [32-port license pack and 8x 128 Gb FC SWL SFP+ V2 transceivers])
Media types	* 128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL) * 4x 16 Gb FC QSFP+: SWL * 32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) * 16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) * 10 Gb FC SFP+: SWL, LWL
Port speeds	* 128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps, 4x 32 Gbps, or 4x 16 Gbps * 128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed * 4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing * 32 Gb FC SFP+: 32/16/8 Gbps auto-sensing * 16 Gb FC SFP+: 16/8/4 Gbps auto-sensing * 10 Gb FC SFP+: 10 Gbps fixed
FC port types	F_Port, E_Port, EX_Port (Requires an optional Integrated Routing License), M_Port (Mirror Port), D_Port (Diagnostic Port)
Dimensions	Height: 87 mm (3.4 in.); width: 440 mm (17.3 in.); depth: 610 mm (24.0 in.)
Weight	Empty: 19.05 kg (42.0 lb.); Fully configured: 21.3 kg (47.0 lb.)
