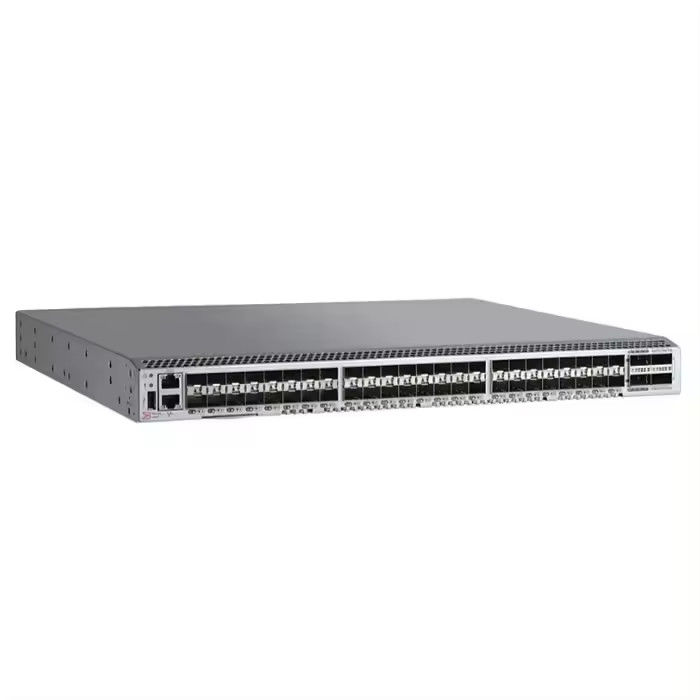

Lenovo DB720S FC SAN Switch Full-fabric Architecture With Maximum Of 239 Switches

Name: Lenovo DB720S FC SAN Switch Full-fabric Architecture With Maximum Of 239 Switches
Brand: Shanghai Qingguang Electronic Technology Co., Ltd.
SKU: DB720S
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Lenovo

Model Number: DB720S

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $10000.00 - $50,000.00/pieces

Packaging Details: Carton Packing

Delivery Time: 1-2months

Payment Terms: T/T

Supply Ability: 100 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                239 FC SAN Switch, Full-fabric architecture FC SAN Switch, Lenovo DB720S FC SAN Switch


Model:	DB720S	Products Status:	Stock
Ports:	≥ 48	Form Factor:	Standalone Or 1U Rack Mount
Port:	Shenzhen/Beijing

Model:	DB720S
Products Status:	Stock
Ports:	≥ 48
Form Factor:	Standalone Or 1U Rack Mount
Port:	Shenzhen/Beijing

Lenovo DB720S FC SAN Switch Full-fabric Architecture With Maximum Of 239 Switches

Details Images

Form factor	Standalone or 1U rack mount
Fibre Channel Ports	Switch mode (default): Minimum of 24 ports and maximum of 64 ports. Ports are enabled in increments of 8 ports up to 64 ports via Ports on Demand (PoD) licenses; E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports. * Up to 48 autosensing ports that support 32Gb or 64Gb SFP+ transceivers * Up to 8 double density (DD) ports that support either SFP+ (32Gb or 64Gb) transceivers for a single connection, or SFP-DD transceivers that each support two 64G connections, thus providing an additional 16 ports at 64Gb. Access Gateway default port mapping: 56x SFP+ F_Ports, 8x SFP+ N_Ports. The SFP+ ports are capable of auto-negotiating to 8, 16, 32, or 64Gb speeds depending on the SFP+ model and the minimum supported speed of the optical transceiver at the other end of the link.
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	4K active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics
Performance	Non-blocking architecture with wire-speed forwarding of traffic: * 8GFC: 8.5 Gb/sec line speed, full duplex * 10GFC: 10.53Gb/s line speed, full duplex; 10Gb/s optionally programmable to fixed port speed. * 16GFC: 14.025 Gb/sec line speed, full duplex * 32GFC: 28.05 Gb/sec line speed, full duplex * 64GFC: 57.8 Gb/sec line speed, full duplex
